MPM416WRK

Submersible Level Transmitter

MPM416WRK

· 1 2 5 10 20mH2O; · Accuracy: +0.25%FS (typ.) +0.5%FS(max.); · 4~20mADC;0～10/20mADC;0/1~5/10VDC Used For Petroleum, Chemical, Water Treatment

MPM416WRK

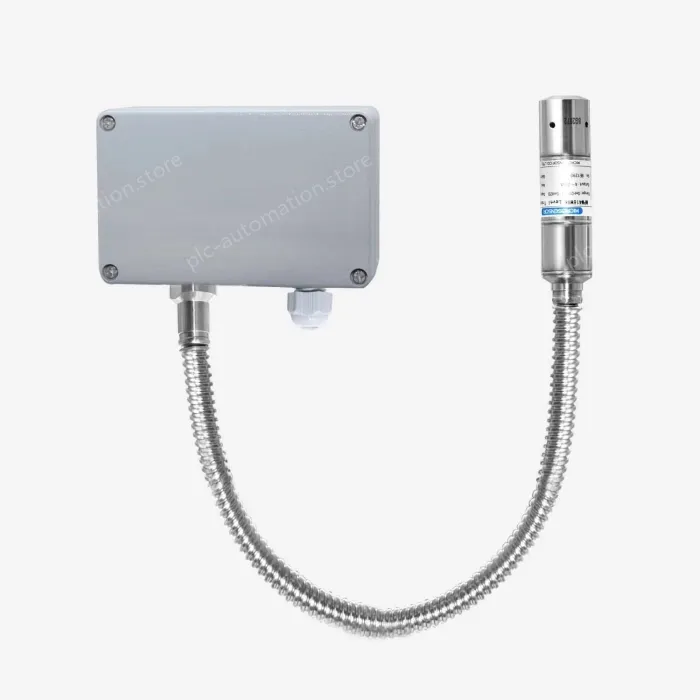

MPM416WRK is flexible armoured protection tube submersible level transmitter. It adopts high-performance piezoresistive pressure sensor and fully sealed stainless steel structure, equipped with aluminium alloy electric junction box, which is very convenient for installation, wiring and calibration. It can accurately measure the static pressure of liquid proportional to the depth of the liquid, and convert the pressure signal into a standard current or voltage output signal through the built-in amplifying circuit board. In addition, it features high accuracy, small size and easy operation. The transmitter is explosion-proof certified and can work in harsh environments and hazardous areas.Features • Liquid static pressure measurement • Fully sealed stainless steel structure • CE & Explosion-proof certificateSpecifications • Pressure range: 1, 2, 5, 10, 20mH2O • Overpressure: 1.5times FS • Accuracy: +0.25%FS(typ.) +0.5%FS(max.) • Stability error: +0.1%FS(typ.) +0.2%FS(max.) pressure range>10mH2O+10mmH2O(typ.) +20mmH2O(max.) pressure range≤10mH2O

★ ★ ★ ★ ★
